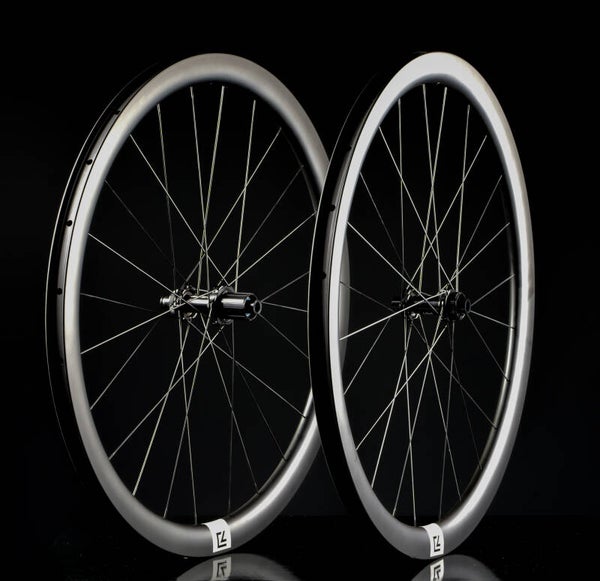

Z40i24SL5 Newmen Plus
Wheelset: 1200g | 300g rim weight
Rim dimensions: 40mm height | 30mm outer width | 24mm inner width
Hub: Newmen FADE SP CL
Hub pair weight: 310g (Front: 99g | Rear SRAM XDR: 211g)
Spokes: Pillar Wing 20/21 Ovalized Bladed Spokes
Spoke count: 24/24
Brake interface: Centerlock
Axle standard: Front 12x100mm | Rear 12x142mm
Max. system weight: 120 kg
| Wheelset | Z40i24SL5 Newmen Plus |
|---|---|
| Rim material | Carbon T1100 |
| Rim height | 40mm |
| Rim outer width | 30mm |
| Inner width | 24mm |
| Rim type | Hooked (NOT hookless) |
| Compatibility | Tubeless Ready & compatible with inner tube |
| Rim weight | 300g |
| Hub | Newmen FADE SP CL |
| Hub pair weight | 310g (Front: 99g | Rear SRAM XDR: 211g) |
| Axle standard | Front: 12x100mm | Rear: 12x142mm |
| Brake interface | Centerlock |
| Spoke count | 24/24 |
| Spokes | Pillar Wing 20/21 Ovalized Bladed Spokes |
| Nipples | Internal (hidden) |
| Max. system weight | 120 kg |
| Wheelset weight | 1200g |
| Aerodynamics: Optimal tyre width | 30mm |
| Compatible tyre width | 28-50mm |
| Wheelset | Z40i24SL4 Newmen Plus |
Components
Rim
At just 300 grams with 30mm outer width and 40mm height.

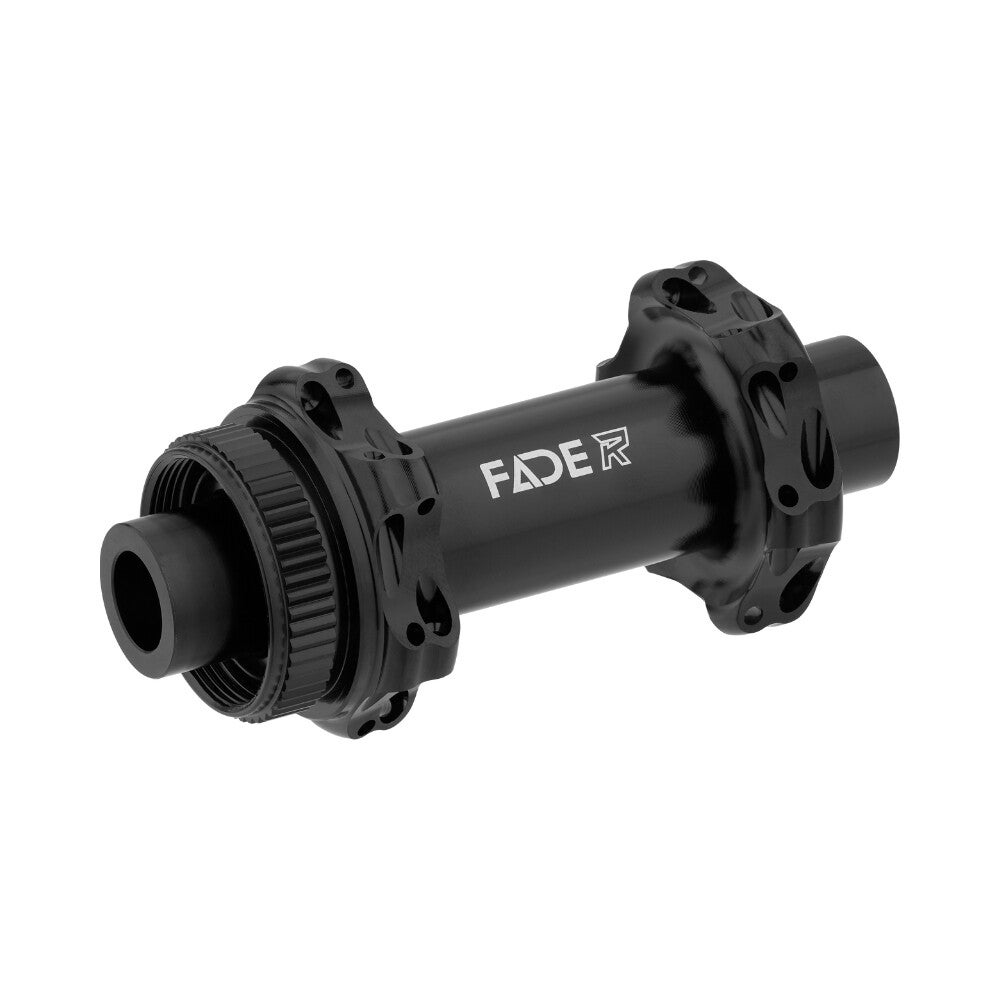

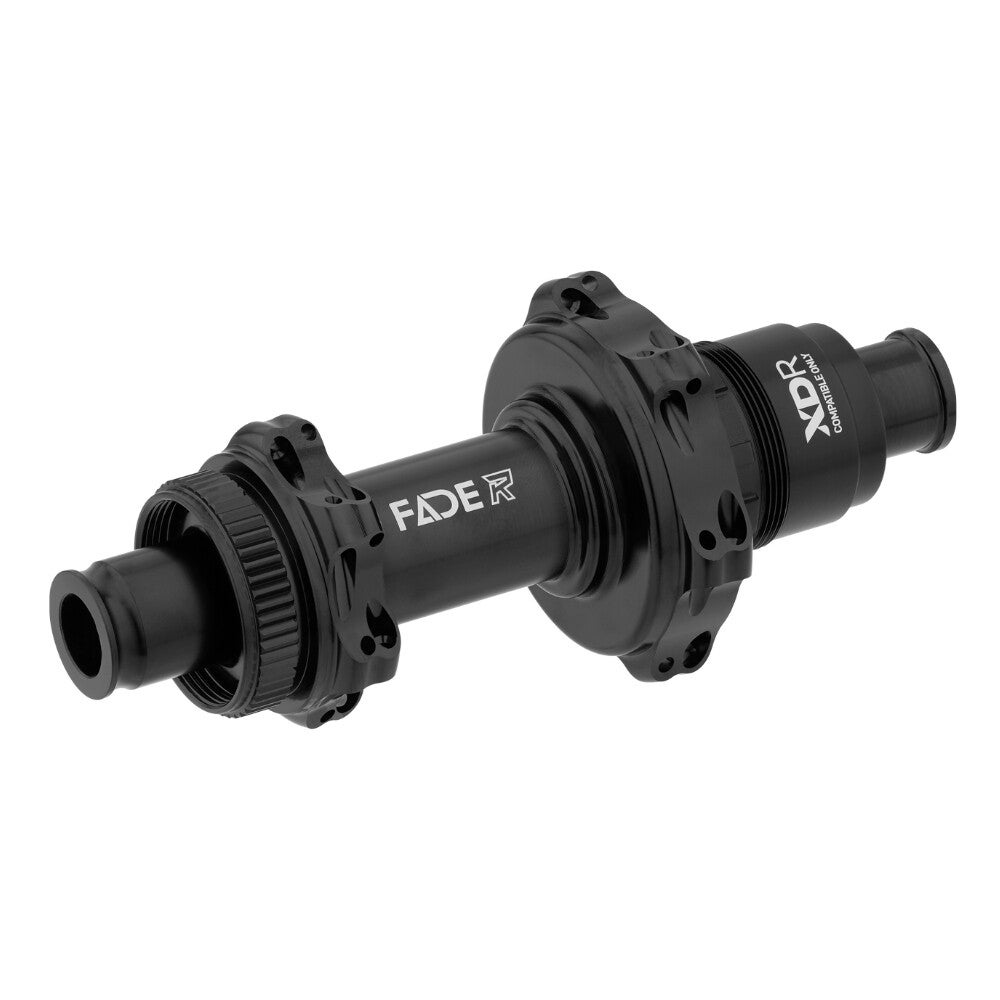

Newmen FADE
The Newmen FADE R hub was developed for the higher loads of modern road and e-road drivetrains. The 36-tooth FADE freehub system with three pawls ensures reliable power transfer and features a significantly reduced freehub noise. The compact hub shell supports an aerodynamic design and is compatible with common freehub standards. High-quality, double-sealed industrial bearings ensure smooth running and a long service life.
Pillar Wing 20/21 Spokes
Aerodynamically shaped bladed spokes with an ovalized cross-section that reduce air resistance compared to conventional bladed spokes. They offer approximately 13–15% higher lateral stiffness compared to bladed spokes of equal weight.
Safety through Hooked Rim Design
The hooked rim construction mechanically secures the tyre bead in the rim bed and allows the use of a wide range of modern tubeless and clincher tyres. No restrictions due to hookless approvals. Maximum tyre compatibility with high operational safety.
