Sturmvogel DT350
Wheelset: 1442g | 405g rim weight
Rim dimensions: 45mm height | 36mm outer width | 29mm inner width
Hub: DT Swiss 350 T36 SP CL
Hub pair weight: 351g (Front: 132g | Rear SRAM XDR: 219g)
Spokes: DT Swiss Aerolite & DT Swiss Aero Comp
Spoke count: 24/24
Brake interface: Centerlock
Axle standard: Front 12x100mm | Rear 12x142mm
Max. system weight: 130 kg

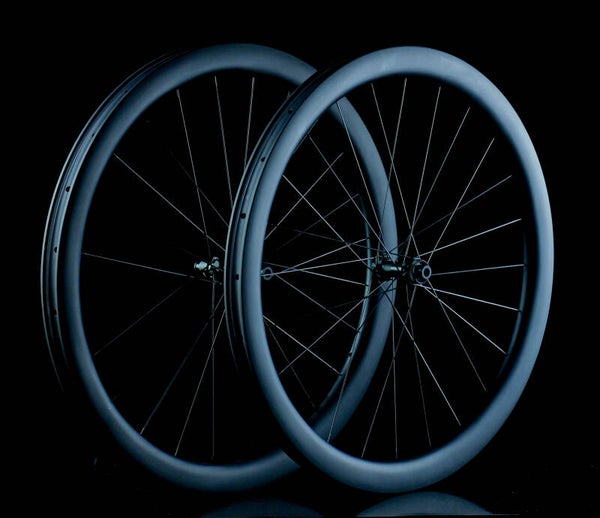

(The picture of the wheelsets shows DT 180 hubs.)
| Wheelset | Sturmvogel DT350 |
|---|---|
| Rim material | Carbon |
| Rim height | 45mm |
| Rim outer width | 36mm |
| Inner width | 29mm |
| Rim type | Hooked (NOT hookless) |
| Compatibility | Tubeless Ready & compatible with inner tube |
| Rim weight | 405g |
| Hub | DT Swiss 350 T36 SP CL |
| Hub pair weight | 351g (Front: 132g | Rear SRAM XDR: 219g) |
| Axle standard | Front: 12x100mm | Rear: 12x142mm |
| Brake interface | Centerlock |
| Spoke count | 24/24 |
| Spokes | DT Swiss Aerolite & DT Swiss Aero Comp |
| Nipples | Internal (hidden) |
| Max. system weight | 130 kg |
| Wheelset weight | 1442g |
| Aerodynamics: Optimal tyre width | 35mm |
| Compatible tyre width | 35-75mm |
Components
Under the project name Sturmvogel, we developed our Z45-36. For the Sturmvogel we deviate from our usual nomenclature and do not use the inner width as the second digit (here 29mm), but instead the outer width – the width of the rim. With 35.5mm at the bead and 37mm at the centre, the Z45-36 offers perfect performance for all gravel racers who can manage with a 35mm wide tyre at the front. Our calculations show an aerodynamic advantage of 3–8 watts compared to 30mm wide gravel rims of the same height.

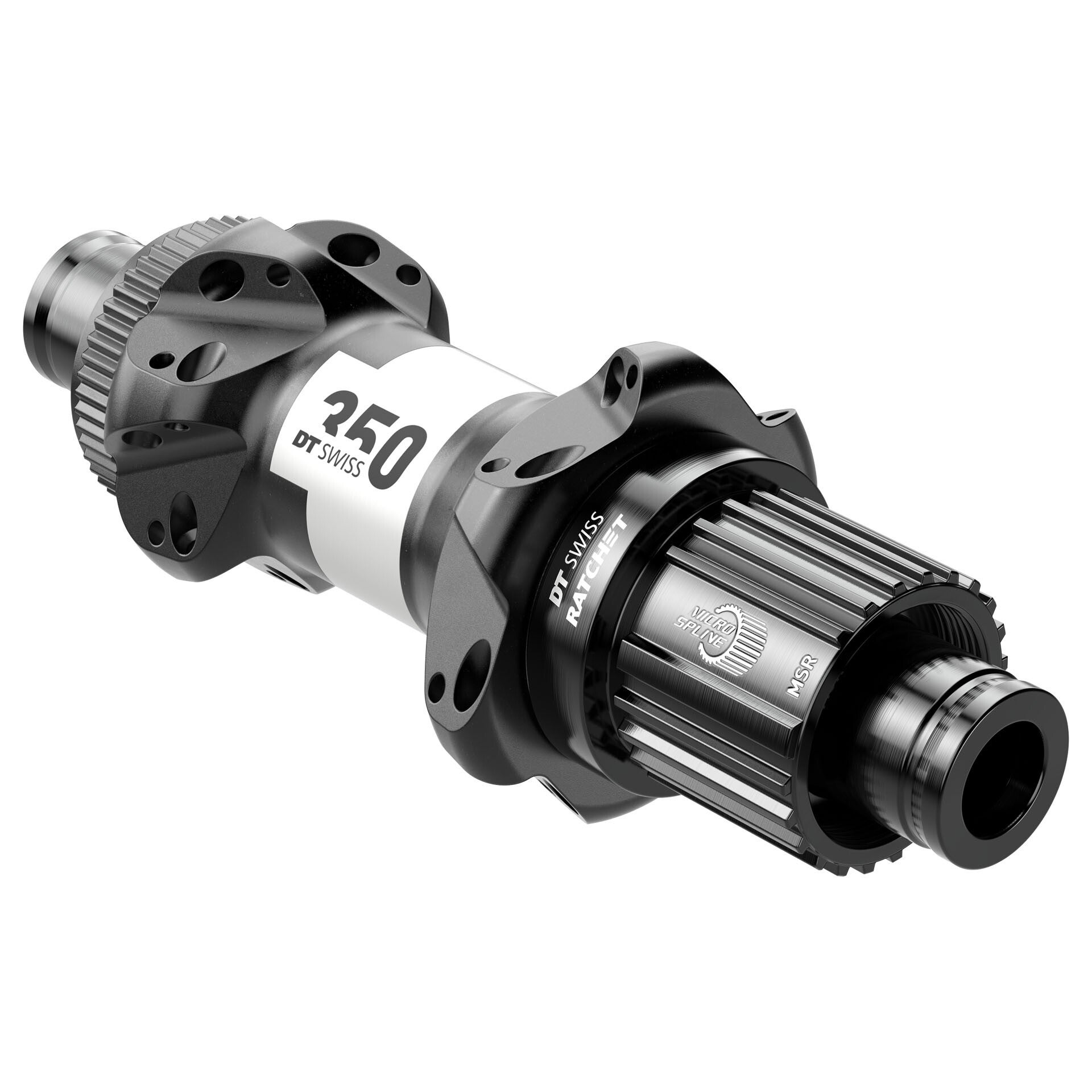

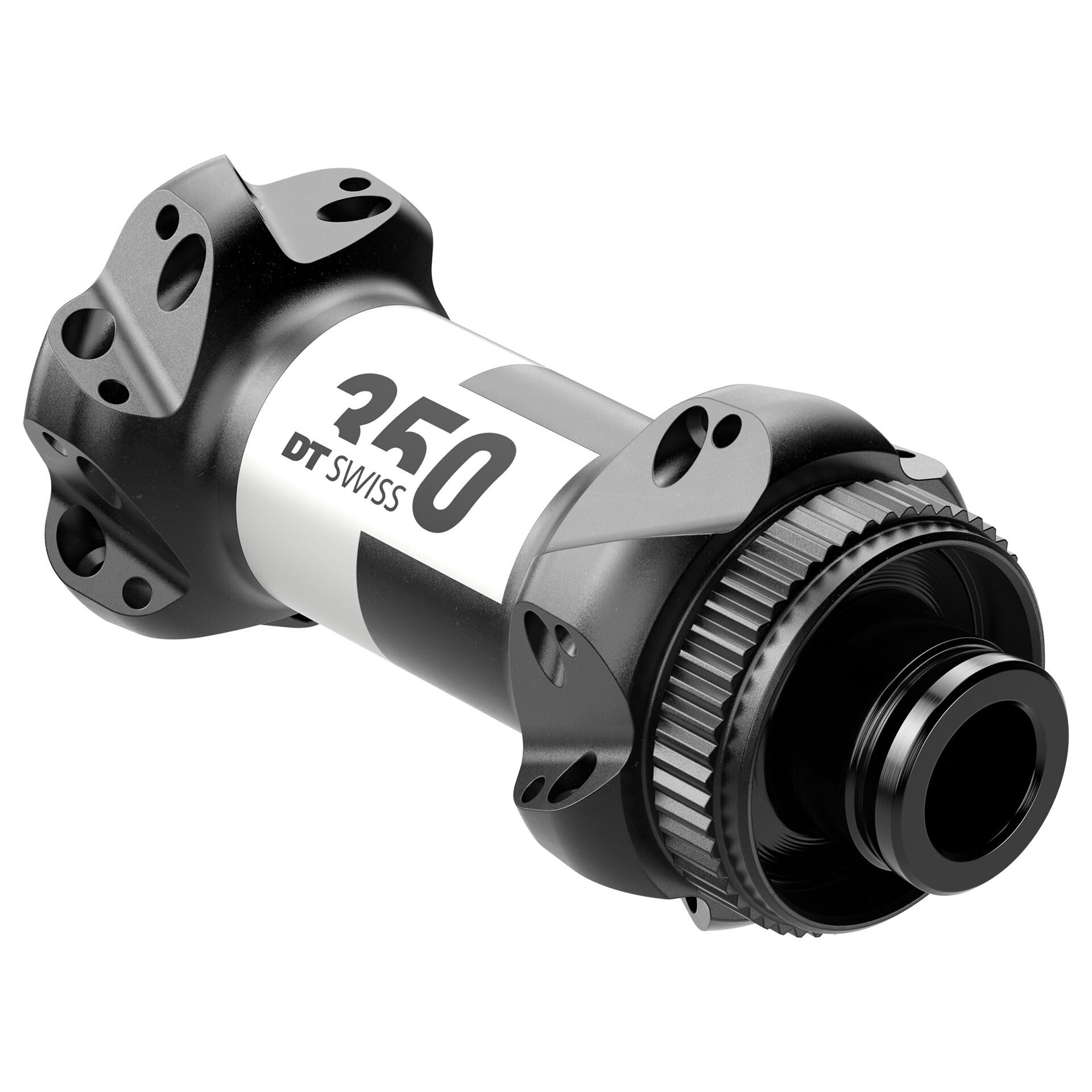

DT Swiss 350
The DT Swiss 350 impresses with its robust construction, low weight and high reliability. A lightweight axle design combined with a precisely milled hub shell reduces weight, while the proven 36-tooth Ratchet freehub system ensures direct and reliable power transfer. Thanks to the tool-free Plug-In design, the freehub can be easily serviced or converted to other freehub standards.
DT Aerolite
The DT Aerolite is a particularly lightweight aero spoke with a flat profile for improved aerodynamics. The combination of a butted mid-section and additional flat forging offers an excellent balance of weight, stability and air resistance. Compatible with hubs with standard spoke holes. Weight: 278g (64 spokes, 264mm).
DT Aero Comp
The DT Aero Comp combines high stability with aerodynamic efficiency. Its butted and flat-forged spoke body provides a balanced combination of stiffness, durability and low air resistance. Compatible with hubs with standard spoke holes. Weight: 380g (64 spokes, 264mm).
Safety through Hooked Rim Design
The hooked rim construction mechanically secures the tyre bead in the rim bed and allows the use of a wide range of modern tubeless and clincher tyres. No restrictions due to hookless approvals. Maximum tyre compatibility with high operational safety.
