Z30i21SL4 Newmen
Wheelset: 1090g | 270g rim weight
Rim dimensions: 30mm height | 28mm outer width | 21mm inner width
Hub: Newmen FADE SP CL
Hub pair weight: 310g (Front: 99g | Rear SRAM XDR: 211g)
Spokes: DT Swiss Aerolite & DT Swiss Aero Com
Spoke count: 24/24
Brake interface: Centerlock
Axle standard: Front 12x100mm | Rear 12x142mm
Max. system weight: 120 kg

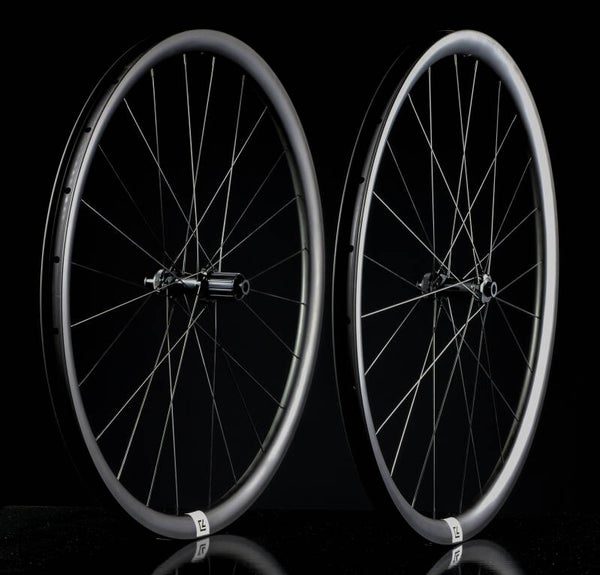

(The picture of the wheelsets shows DT180 hubs.)
| Wheelset | Z30i21SL4 Newmen |
|---|---|
| Rim material | Carbon T1000 |
| Rim height | 30mm |
| Rim outer width | 28mm |
| Inner width | 21mm |
| Rim type | Hooked (NOT hookless) |
| Compatibility | Tubeless Ready & compatible with inner tube |
| Rim weight | 270g |
| Hub | Newmen FADE SP CL |
| Hub pair weight | 310g (Front: 99g | Rear SRAM XDR: 211g) |
| Axle standard | Front: 12x100mm | Rear: 12x142mm |
| Brake interface | Centerlock |
| Spoke count | 24/24 |
| Spokes | DT Swiss Aerolite & DT Swiss Aero Comp |
| Nipples | Internal (hidden) |
| Max. system weight | 120 kg |
| Wheelset weight | 1090g |
| Aerodynamics: Optimal tyre width | 28mm |
| Compatible tyre width | 28-50mm |
Components
Only just 270 grams with 28mm outer width at 30mm height.

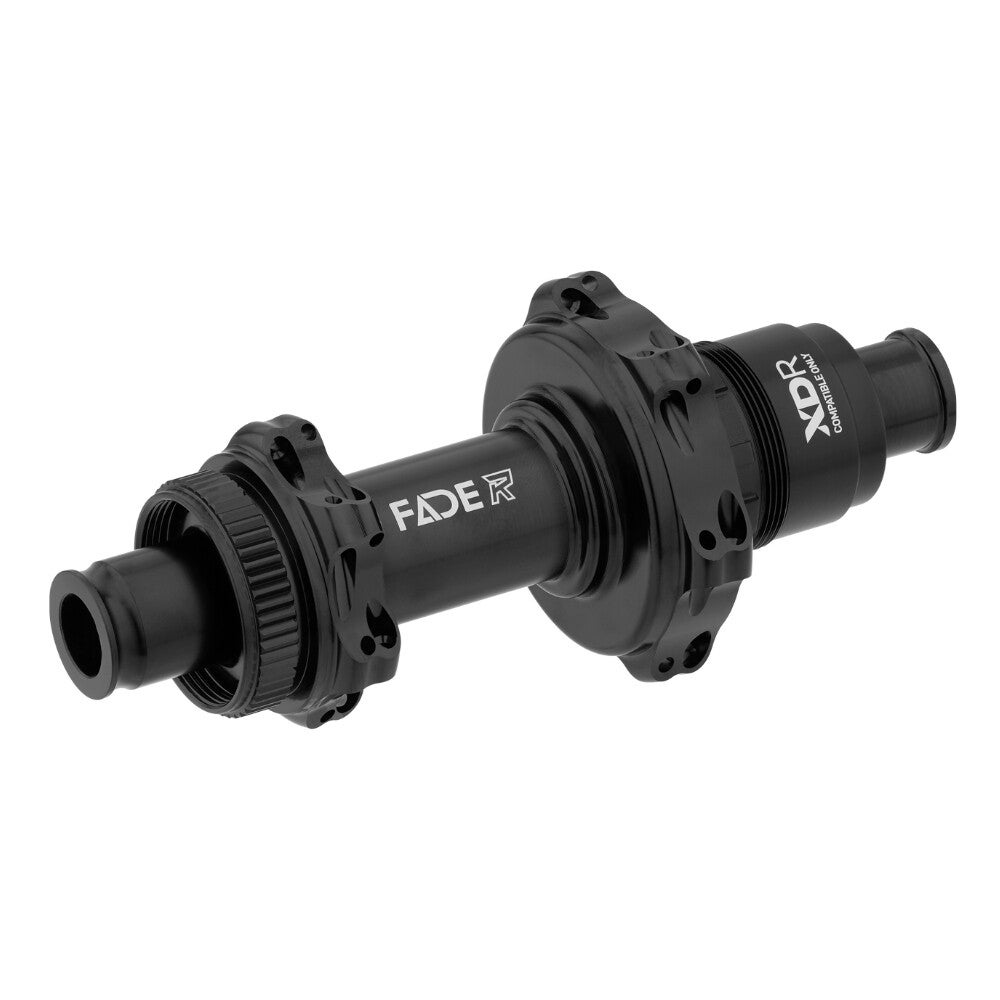

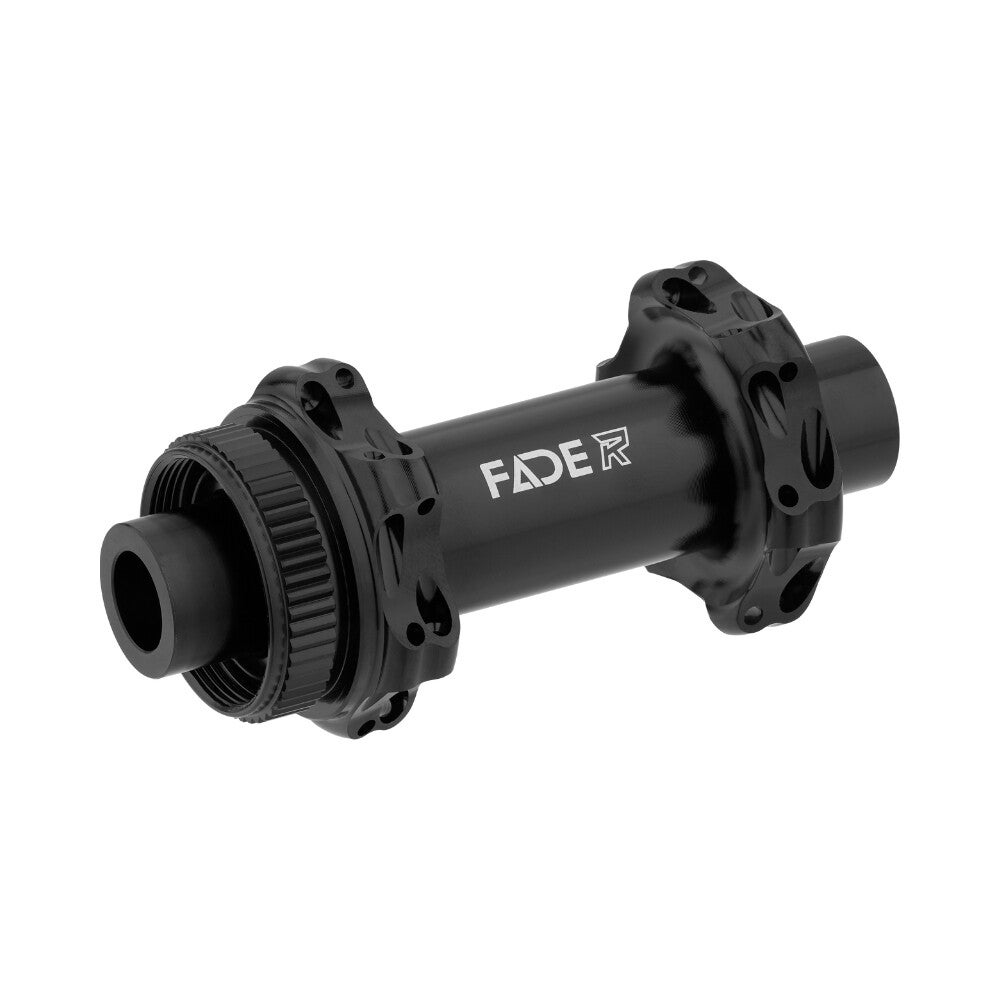

Newmen FADE
The Newmen FADE R hub was developed for the higher loads of modern road and e-road drivetrains. The 36-tooth FADE freehub system with three pawls ensures reliable power transfer and features a significantly reduced freehub noise. The compact hub shell supports an aerodynamic design and is compatible with common freehub standards. High-quality, double-sealed industrial bearings ensure smooth running and a long service life.
DT Aerolite
The DT Aerolite is a particularly lightweight aero spoke with a flat profile for improved aerodynamics. The combination of a butted mid-section and additional flat forging offers an excellent balance of weight, stability and air resistance. Compatible with hubs with standard spoke holes. Weight: 278g (64 spokes, 264mm).
DT Aero Comp
The DT Aero Comp combines high stability with aerodynamic efficiency. Its butted and flat-forged spoke body provides a balanced combination of stiffness, durability and low air resistance. Compatible with hubs with standard spoke holes. Weight: 380g (64 spokes, 264mm).
