EN-Boss Newmen Silver Centerlock
Wheelset: 1395g | 380g rim weight
Rim dimensions: 23mm height | 38mm outer width | 30mm inner width
Rim: Hookless
Hub: Newmen Fade silver SP CL
Hub pair weight: 330g (Front: 100g | Rear SRAM XD: 230g)
Spokes: DT Comp Race/DT Revolution
Spoke count: 28/28
Nipples: Sapim Polyax
Brake interface: Centerlock
Axle standard: Front 15x110mm | Rear 12x148mm
Max. system weight: 150kg (AM/Light Enduro) | 130kg (Enduro) | 95kg (Park)
(The picture of the wheelsets shows DT240 hubs.)
| Wheelset | EN-Boss Newmen Silver Centerlock |
|---|---|
| Rim material | Carbon |
| Rim Size | 29" |
| Rim height | 23mm |
| Rim outer width | 38mm |
| Inner width | 30mm |
| Rim type | Hookless |
| Compatibility | Tubeless Ready |
| Rim weight | 380g |
| Hub | Newmen Fade silver SP CL |
| Hub pair weight | 330g |
| Axle standard | Front 15x110mm | Rear 12x148mm |
| Brake interface | Centerlock |
| Spoke count | 28/28 |
| Spokes | DT Comp Race/DT Revolution |
| Nipples | Sapim Polyax |
| Max. system weight | 150kg (AM/Light Enduro) | 130kg (Enduro) | 95kg (Park) |
| Wheelset weight | 1395g |
| Compatible tyre width | 38-65mm |
Components
Boss the trails you're up for. The EN-Boss rim is a complete new development. Building on the new XC-Master (same shape and finish), we significantly reinforced our new enduro rim to 380g. The new 4mm wide rim hook reduces pinch flats and absorbs every single impact. Impacts that do get through hit a rim hook that is significantly more massive than its predecessor's.
With the EN-Boss you boss every trail. Including bike park visits.
The carbon rim weighs 380g with a 30mm inner width and a 38mm outer width. The rim height is 23mm.
Every wheelset is hand-built in Germany. Homogeneous spoke tension ensures a long spoke life even under the toughest use. We offer a crash replacement for this wheelset: we replace a damaged rim for the original buyer for €200 including VAT, including rebuild with new spokes and nipples.

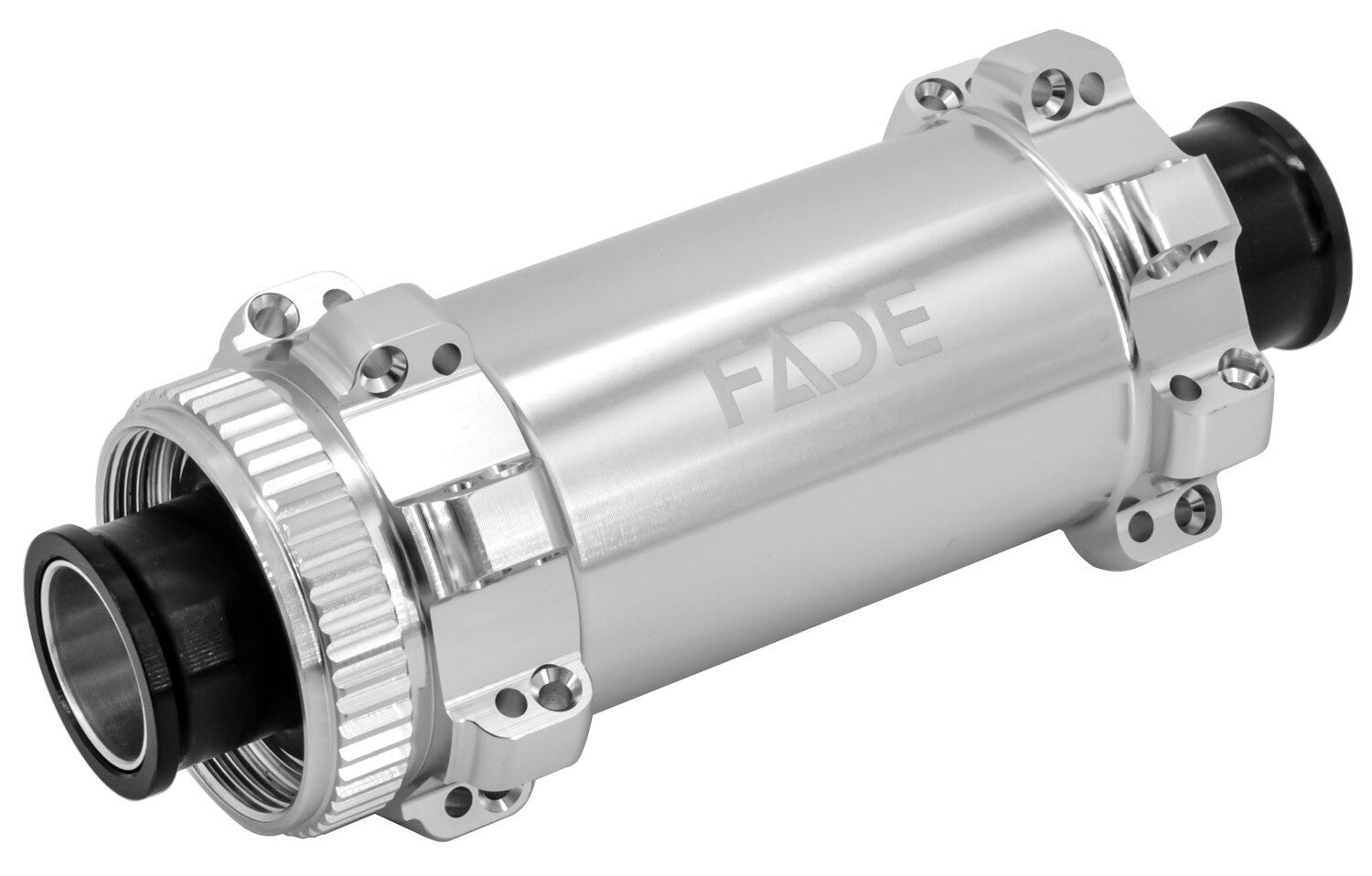

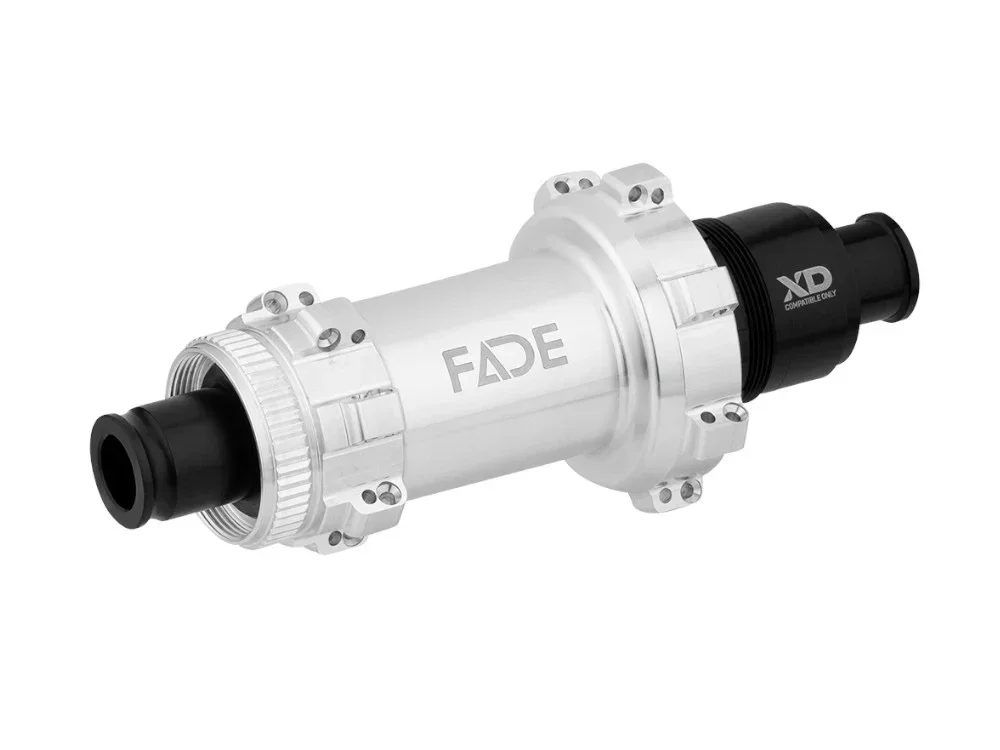

Newmen Fade MTB
The Newmen FADE MTB hub features a large-diameter FADE freehub system with three pawls. The large freehub diameter reduces the load on individual components, while the optimised tooth profile reduces freehub noise. The wide design of the pawls supports even power transfer. Reinforced material areas at highly stressed points increase robustness.
DT Competition Race
The DT Competition Race is a butted round spoke with a particularly thin mid-section for weight reduction. Despite its low weight, it offers high stability and is suitable for lightweight, durable wheels. Weight: 313g (64 spokes, 264mm).
DT Revolution
The DT Revolution is the lightest round spoke in the DT Swiss range. The mid-section, butted down to 1.5mm, reduces weight while maintaining high strength, making it suitable for a wide range of wheel concepts. Weight: from 283g (64 spokes, 264mm).
Hookless
The hookless rim design provides a continuous rim profile without a hook. Combined with compatible tubeless tyres, this rim supports the use of modern tyres and tyre widths at low air pressures.
