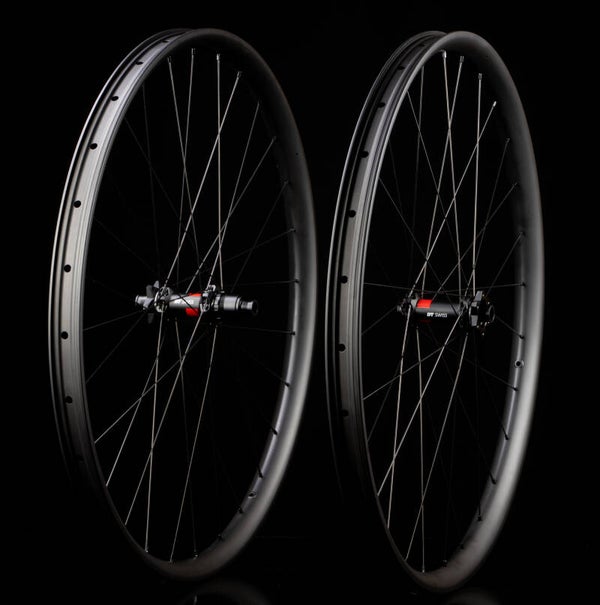

SMCi30 Ultra 285 DT240 6-Bolt
Wheelset: 1245g | 285g rim weight
Rim dimensions: 38mm outer width | 30mm inner width
Rim: Hookless
Hub: DT 240EXP SP 6 Loch
Hub pair weight: 325g (Front: 118g | Rear SRAM XD: 207g)
Spokes: DT Comp Race/DT Revolution
Spoke count: 28/28
Nipples: Sapim Polyax
Brake interface: 6-Bolt
Axle standard: Front 15x110mm | Rear 12x148mm
Max. system weight: 120kg
| Wheelset | SMCi30 Ultra 285 DT240 6-Bolt |
|---|---|
| Rim material | Carbon |
| Rim Size | 29" |
| Rim height | n/a |
| Rim outer width | 38mm |
| Inner width | 30mm |
| Rim type | Hookless |
| Compatibility | Tubeless Ready |
| Rim weight | 285g |
| Hub | DT 240EXP SP 6 Loch |
| Hub pair weight | 325g |
| Axle standard | Front 15x110mm | Rear 12x148mm |
| Brake interface | 6-Bolt |
| Spoke count | 28/28 |
| Spokes | DT Comp Race/DT Revolution |
| Nipples | Sapim Polyax |
| Max. system weight | 120kg |
| Wheelset weight | 1245g |
| Compatible tyre width | 38-65mm |
Components
Our SMCi30 Ultra rim weighs a sensational 285g with a 30mm inner width. Development took two years. Among other things, the spoke holes were reinforced using a special manufacturing process. This x-shape reinforcement results in 15% higher strength values at a lower weight.
The rim profile is slightly asymmetric, enabling an even more harmonious build. Our manufacturer is one of the most experienced rim manufacturers in the Far East with consistently high production quality. The rims are inspected and tested according to European standards.
The SMCi30 Ultra is suitable for riders up to 105kg body weight for XC and AM.
Every wheelset is hand-built in Germany. Homogeneous spoke tension ensures a long spoke life even under the toughest use. We offer a crash replacement for this wheelset: we replace a damaged rim for the original buyer for €300 including VAT, including rebuild with new spokes and nipples.

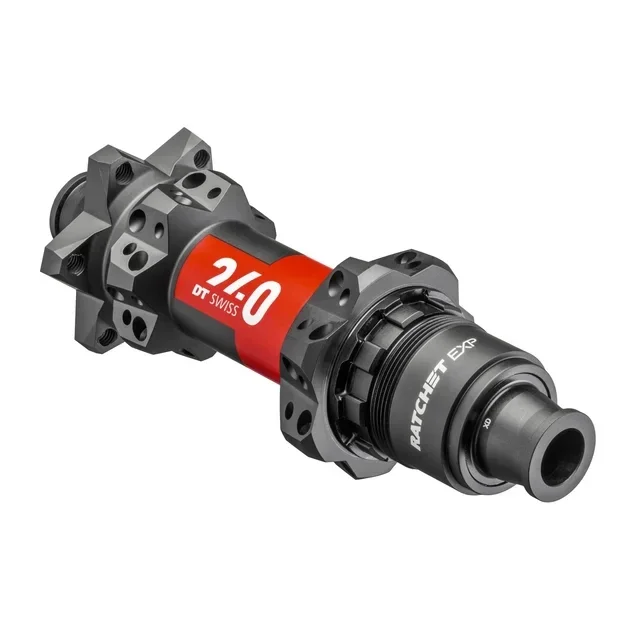

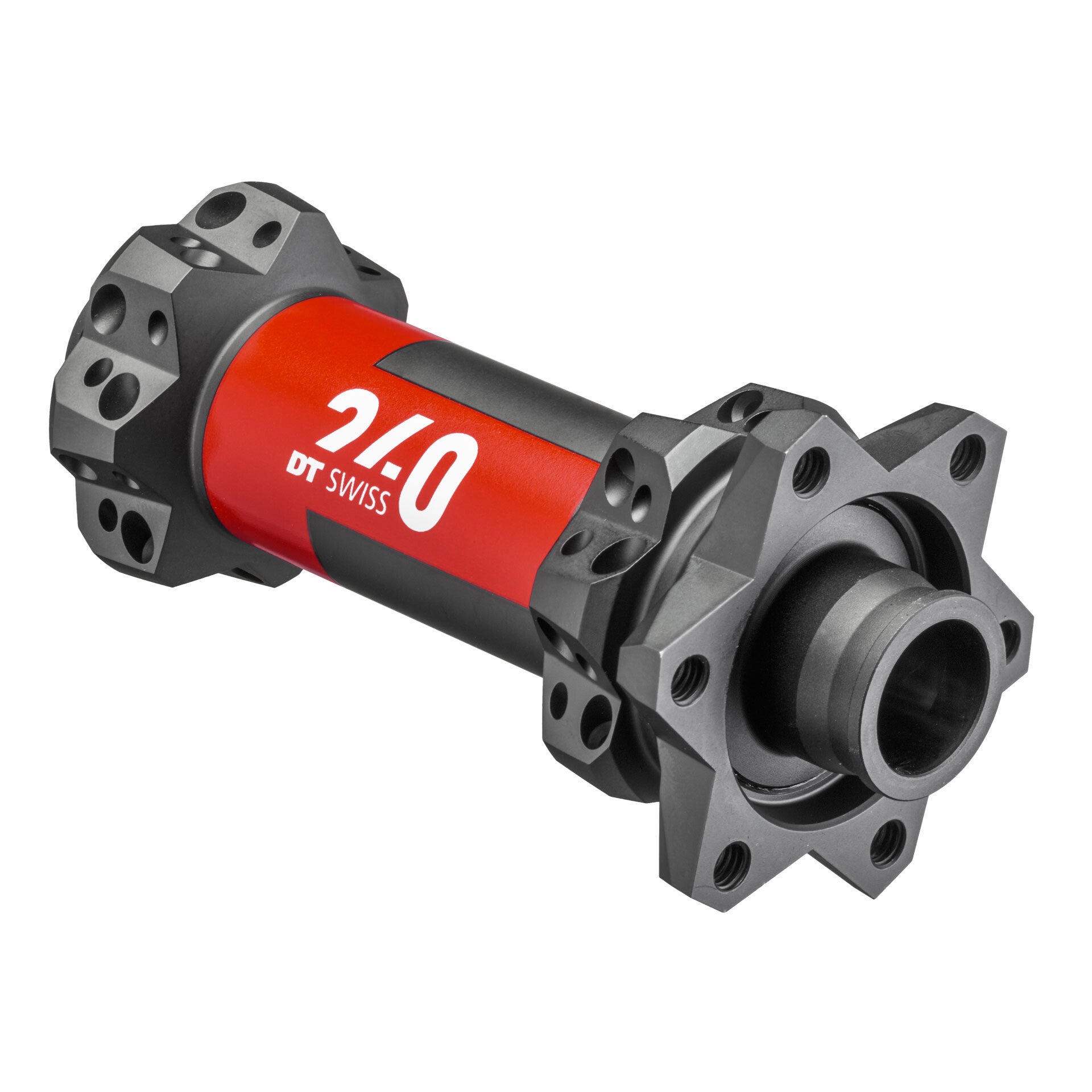

DT Swiss 240
The DT Swiss 240 combines low weight with high reliability and easy maintenance. The Ratchet EXP 36 freehub system ensures direct power transfer and high durability thanks to its reduced number of components. The tool-free design allows easy maintenance and conversion to different freehub standards.
DT Competition Race
The DT Competition Race is a butted round spoke with a particularly thin mid-section for weight reduction. Despite its low weight, it offers high stability and is suitable for lightweight, durable wheels. Weight: 313g (64 spokes, 264mm).
DT Revolution
The DT Revolution is the lightest round spoke in the DT Swiss range. The mid-section, butted down to 1.5mm, reduces weight while maintaining high strength, making it suitable for a wide range of wheel concepts. Weight: from 283g (64 spokes, 264mm).
Hookless
The hookless rim design provides a continuous rim profile without a hook. Combined with compatible tubeless tyres, this rim supports the use of modern tyres and tyre widths at low air pressures.
